Automatic Precision Powder Weighing Machine

-Automatic weighing -Easy Operating -Precise to save material cost

Brand:
Shunhao
Payment:
LC, TT
Product Origin:
China
Shipping Port:
Xiamen
Trainning Service:
Yes
Support Service:
Life-time Service

Inquiry now

Product Detail

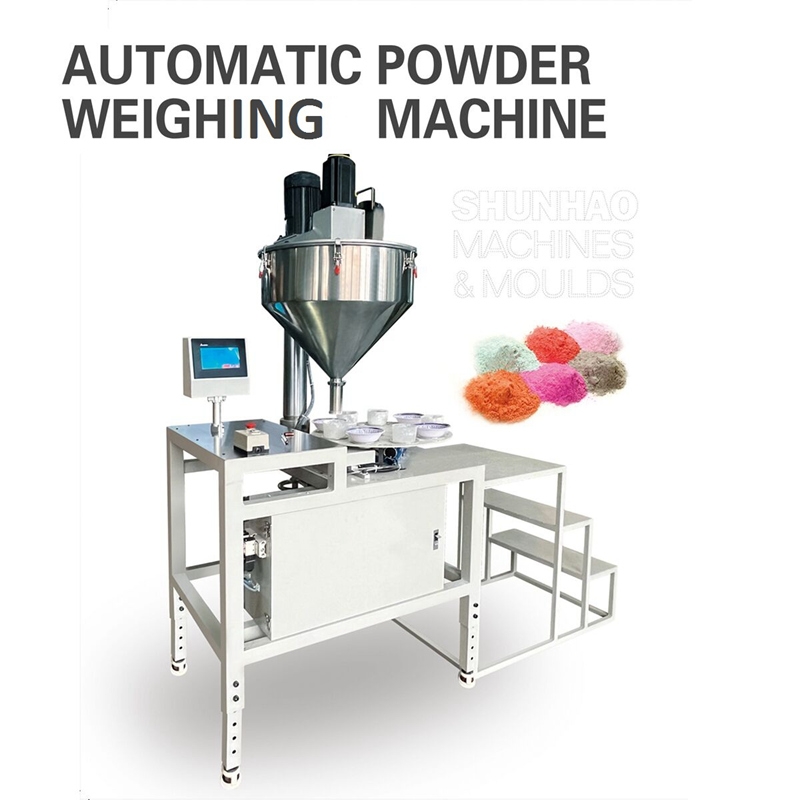

Automatic Powder Weighing Machine

Typically, each melamine tableware forming machine is accompanied by a weighing machine to facilitate precise measurement of melamine molding powder.

Dimensions	15006502200mm (LWH)	Equipment load rate	≥97%
Input voltage	AC-220V 50Hz or AC-380V 50Hz	Motion resolution of conveying and unloading manipulator	5 mm
Maximum power	530 W (at 220V)	Repeated positioning accuracy of the robo	≤±0.5 mm
Input air source pressure	0.4-0.6 Mpa	Control communication method	232/485
Air consumption	3.0 L/min	Programming method	touch screen parameter modification
Production efficiency (C/T)	≤ 10 S/one mold	Weighing accuracy	≤±2.g

automatic weighing machine

Features of the Fully Automatic Electronic Precision Weighing Machine

1. A production line equipment for high-precision dispensing of powder materials and an integral part of unmanned automation modules.

2. Customizable variable lifting platform with a total height adjustable by 10cm.

3. User-friendly electronic and mechanical dual-induction weighing system.

4. Multiple options for customizable discharge methods to meet the needs of different weight products. (Discharge ports with diameters of 39mm and 50mm can be interchanged.)

5. Electronic measurement with data storage and uploading capabilities, including counting, shortage detection, cumulative alarm functions, and compatibility for upgrading to version 2.0 and integration with intelligent robotic arms.

6. Material bin with a capacity of 40kg.

automatic weighing machine
