Melamine Paper Cutting Machine

Automatic Weighing Machine for Melamine Tableware Production

-Automatic weighing  -Save much raw material

  • Brand:

    Shunhao
  • Payment:

    LC, TT
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Trainning Service:

    Yes
  • Support Service:

    Life-time Service

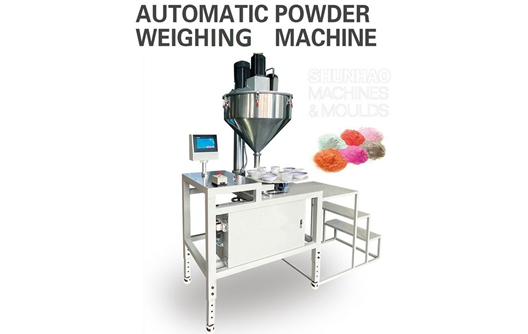

Automatic Weighing Machine

In most cases, a single melamine tableware forming machine comes with a weighing machine to conveniently and precisely measure the melamine molding powder.

Dimensions

1500*650*2200mm (L*W*H)

Equipment load rate

≥97%

Input voltage

AC-220V 50Hz or AC-380V 50Hz

Motion resolution of conveying and unloading manipulator

5 mm

Maximum power

530 W (at 220V)

Repeated positioning accuracy of the robo

≤±0.5 mm

Input air source pressure

0.4-0.6 Mpa

Control communication method

232/485

Air consumption

3.0 L/min

Programming method

touch screen parameter modification

Production efficiency (C/T)

≤ 10 S/one mold

Weighing accuracy

≤±2.g

automatic weighing machine

Advantages of Shunhao automatic weighing machine

1. Shunhao automatic weighing machine offers precise powder distribution for production lines, serving as an unmanned automation module in the molding process.

2. The machine features a customizable lift table that can adjust the overall height by lifting or lowering it by 10CM.

3. With its user-friendly electronic and mechanical dual-induction weighing system, the Shunhao automatic weighing machine ensures efficient and accurate measurements.

4. It provides various flexible methods for dispensing materials, accommodating products of different weights.

5. The machine utilizes electronic metering with data storage and upload capabilities. It includes functions such as counting, detecting shortages, triggering accumulation alarms, and is compatible with the upgraded 2.0 version and intelligent robotic.
